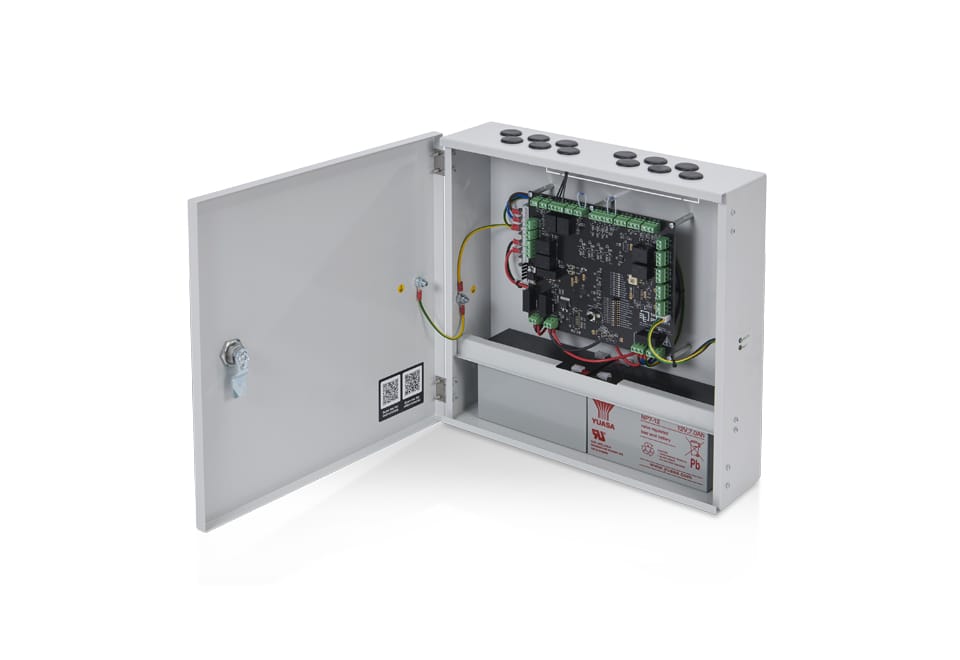

A wall-mounted electrical control box with its door open, displaying internal wiring, circuit board, and components designed for door automation. The box has multiple cable entry points at the top.

SCP500 – 5A AOV Smoke Control Panel

Logo of Teal Products

Description

SCP500 AOV Control Panel (5 Amp) for the operation of 24V DC AOV or OV’s. Complete with Fire Alarm interface and 72 hour battery backup system as standard.

Get a quote

In stock, next day delivery

Additional details

  • Control for 24V DC Smoke Vents (5 Amp max)
  • 1-Zone
  • 31 x SCP500/800 can be networked to form multi-zone system
  • 'Master' & 'Slave' functions
  • Input options for Manual Call Points, Smoke Sensor, Fire Alarm & Rocker Switch
  • Supplied complete with 2 x 12v batteries
  • Certified and tested in accordance to EN 12101-10
  • Motor Lines 1

Motor Load

5 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

1

Inputs For

BG3/FOS – Manual Call Point

BG3/FOS Manual Call Point (Switch) for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal to be sent to AOV Smoke Vent upon the detection of Smoke.

BG4/FOS – Firemans Key Switch

BG4/FOS Firemans Key Switch for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal (via Control Panel) to be sent to AOV Smoke Vent upon the detection of Smoke.

BG6/FOS – Firemans Key Switch

BG6/FOS Firemans Key Switch for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal (via Control Panel) to be sent to AOV Smoke Vent upon the detection of Smoke.

BG1/S – Breakglass Callpoint

BG1/S Manual Call Point (Breakglass) for use with our range of Smoke Vent Panels. Upon a signal from the BG1/S Call Point the Smoke Vent Control Panel will send an open signal to the Automatic Smoke Vent.

BG1/FOS – Firemans Switch

BG1/FOS Manual Call Point (Switch) for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal to be sent to AOV Smoke Vent upon the detection of Smoke.

SSR – Smoke Sensor

SSR optical Smoke Sensor for use with our range of smoke control AOV panels. Upon a signal from the SSR-D smoke sensor the AOV Control Panel will send an open signal to the AOV Actuator.

HMI-SCP – Smoke Vent System Interface

HMI-SCP touchscreen interface for use as part of a smoke ventilation control system. The user is able to drill down zone by zone to view the current system status as well as give a manual open or close/reset command per zone.

WLA 331 – Rain Sensor

WindowMaster WLA 331 rain sensor (24v) for automatic operation of 24VDC actuators via compatible control panels.

TS2 – Room Thermostat

TS2 room thermostat to automatically operate 24V DC actuators based on room temperature via compatible control units.

S50 – Rocker Switch

S50 rocker switch for the operation of 230V AC Actuators or 24V DC Actuators (via 24V DC controllers)

RRTKEY – Key Switch

RRTKEY Key Switch for operation of 230V AC window actuators. 3 positions – OPEN, OFF, CLOSE.
