Smoke Extract Fan Control Panel for Mechanical Systems

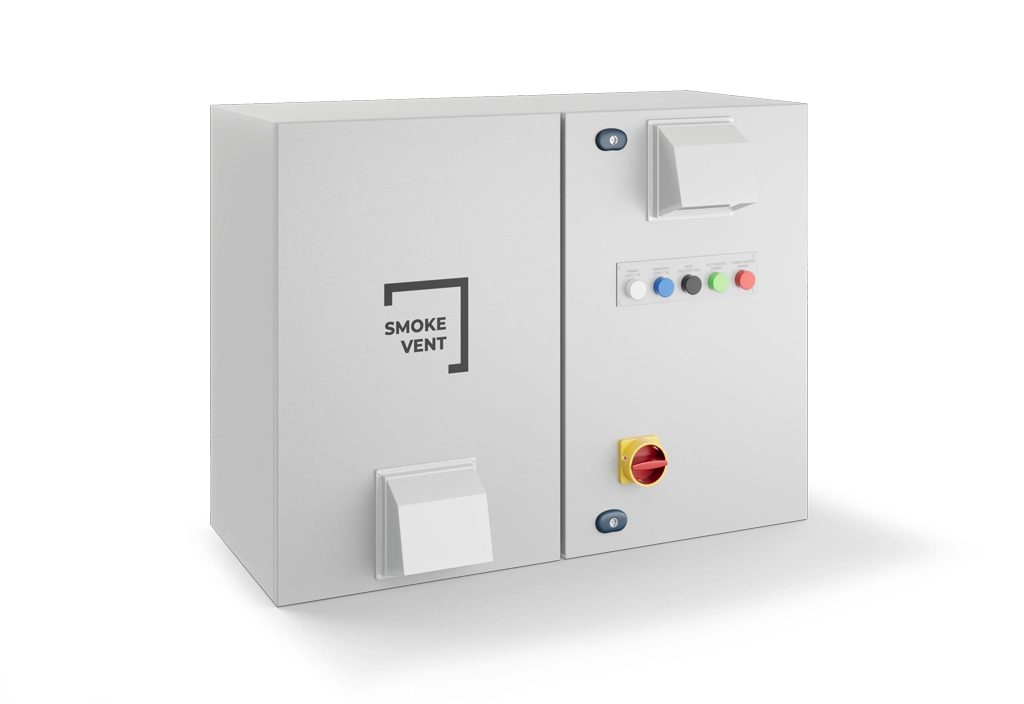

FCP1000 – Smoke Extract Fan Control Panel

The FCP1000 Control Panel is a robust and reliable solution designed to manage and power mechanical fan units for smoke control in residential buildings. Engineered to activate and regulate fan systems in emergency situations, the FCP1000 ensures efficient smoke extraction, enhancing safety by maintaining clear escape routes.

Motor Load

11kW 7.5kW 5.5kW 3.5kW

Voltage Input

400V AC

Voltage Output

400V AC

Zones

1

A gray rectangular smoke vent control box with multiple cable entry points on the top and a lockable access panel on the front labeled "SMOKE VENT" integrates seamlessly into natural ventilation systems, efficiently managing window actuators.

SCP500 – AOV Control Unit

SCP500 AOV Control Panel (5 Amp) for the operation of 24V DC AOV or OV’s. Complete with Fire Alarm interface and 72 hour battery backup system as standard.

Motor Load

5 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

1

SCP800 – AOV Control Unit

SCP800 AOV Control Panel (8 Amp) for the operation of 24V DC AOV or OV’s. Complete with Fire Alarm interface and 72 hour battery backup system as standard.

Motor Load

8 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

1

A white WallMaster control box labeled "WindowMaster" with a yellow instruction label and a keyhole, accompanied by two keys, ideal for integrating window actuators for efficient natural ventilation.

WSC 104 – AOV Control Unit

WindowMaster WSC 104 smoke control AOV panel (4 Amp) for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation.

Motor Load

4 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

1

A white electronic device with multiple circular ports on the top and a manufacturer's label on the front, designed to integrate seamlessly with door automation systems.

WSC 310-PLUS – AOV Control Unit

WindowMaster CompactSmoke WSC 310-PLUS Smoke Control AOV Panel 2 zone, 10 Amp for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation.

Motor Load

10 amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

2

A rectangular white industrial control panel enclosure with black knobs and a yellow warning label.

WSC 520 – AOV Control Unit

WindowMaster WSC 520 Smoke Control AOV Panel for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation. Can be configured to operate up to 13 motorlines, with a 20 Amp max. motor load.

Motor Load

20 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

1 5 9 13

WSC 320-PLUS – AOV Control Unit

WindowMaster CompactSmoke WSC 320-PLUS Smoke Control AOV Panel 2 or 10 zone, 20 Amp for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation.

Motor Load

20 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

2 10

WindowMaster WSC 540 FlexiSmoke smoke control panel for use as part of a smoke ventilation system.

WSC 540 – AOV Control Unit

WindowMaster FlexiSmoke WSC 540 Smoke Control AOV Panel for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation. Can be configured to operate up to 26 motorlines, with a 40 Amp max. motor load.

Motor Load

40 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

2 6 10 14 18 22 26

WindowMaster WSC 560 smoke control panel for use as part of a smoke ventilation system.

WSC 560 – AOV Control Unit

WindowMaster FlexiSmoke WSC 560 Smoke Control AOV Panel for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation. Can be configured to operate up to 39 motorlines, with a 60 Amp max. motor load.

Motor Load

60 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

3 7 11 15 19 23 27 31 35 39

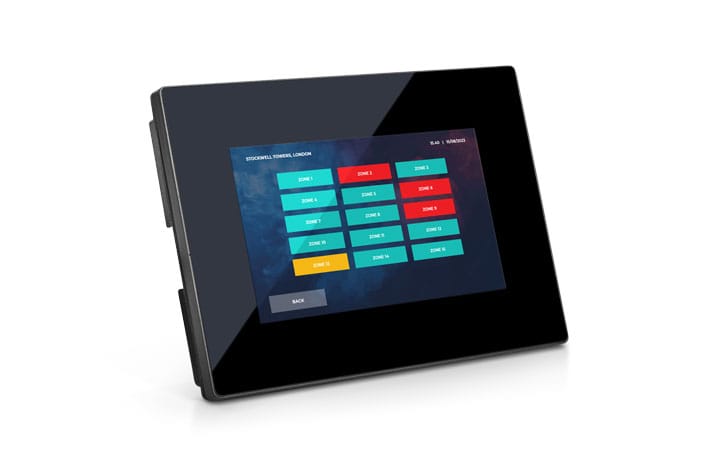

HMI smoke vent system status display and control interface

HMI-SCP – Smoke Vent System Interface

HMI-SCP touchscreen interface for use as part of a smoke ventilation control system. The user is able to drill down zone by zone to view the current system status as well as give a manual open or close/reset command per zone.

WSC MP mimic indicator panel for a smoke ventilation system.

WSC MP – Mimic Panel

WSC MP mimic panel with LED indicators for use as part of a smoke ventilation system. Pre-configured to respond to 12 group objects (1-12) from WindowMaster FlexiSmoke control panel with KNX field bus module.

A yellow smoke vent control switch with a white panel and black directional arrow symbols, designed to manually activate smoke ventilation in emergencies.

BG1/S – Breakglass Callpoint

BG1/S Manual Call Point (Breakglass) for use with our range of Smoke Vent Panels. Upon a signal from the BG1/S Call Point the Smoke Vent Control Panel will send an open signal to the Automatic Smoke Vent.

A yellow smoke vent control box with an open/close switch, perfect for integrating into door automation or window actuators systems.

BG1/FOS – Firemans Switch

BG1/FOS Manual Call Point (Switch) for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal to be sent to AOV Smoke Vent upon the detection of Smoke.

Orange smoke vent control panel with two buttons labeled "Open" and "Close/Reset.

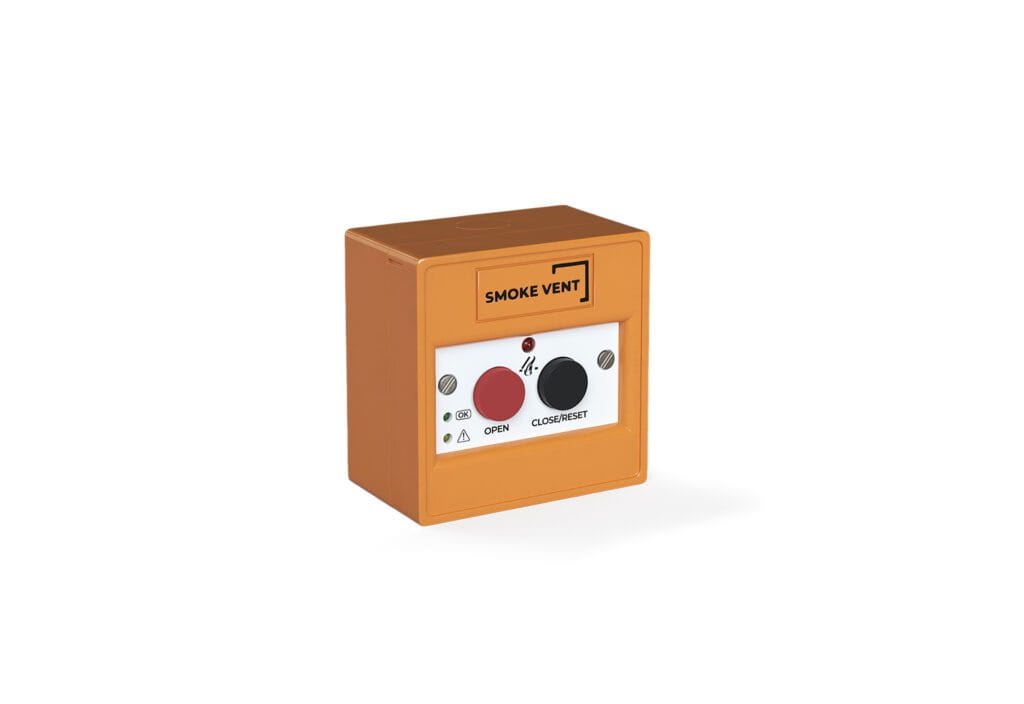

BG3-PRO – Manual Call Point

BG3-PRO Manual Call Point (Switch) for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal to be sent to AOV Smoke Vent upon the detection of Smoke.

An orange smoke vent control box with a red button and a label indicating "SMOKE VENT" ensures efficient smoke ventilation in emergency situations.

BG3/FOS – Manual Call Point

BG3/FOS Manual Call Point (Switch) for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal to be sent to AOV Smoke Vent upon the detection of Smoke.

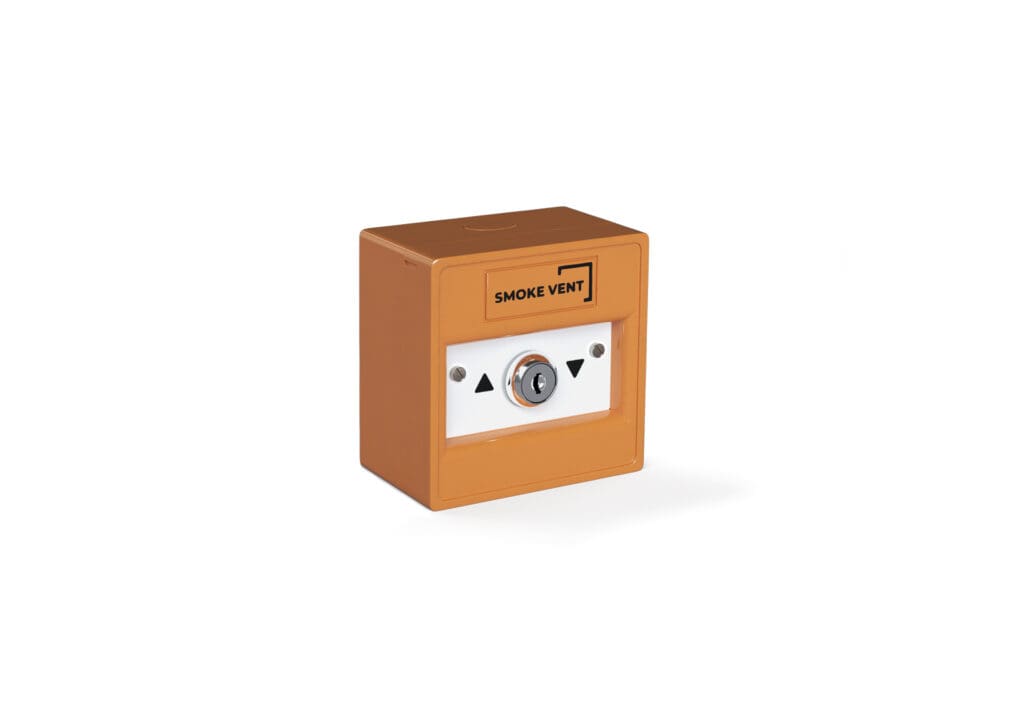

A square yellow box labeled "Smoke Vent" features a central key slot flanked by two arrow buttons, seamlessly integrating with window actuators for enhanced natural ventilation.

BG4/FOS – Firemans Key Switch

BG4/FOS Firemans Key Switch for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal (via Control Panel) to be sent to AOV Smoke Vent upon the detection of Smoke.

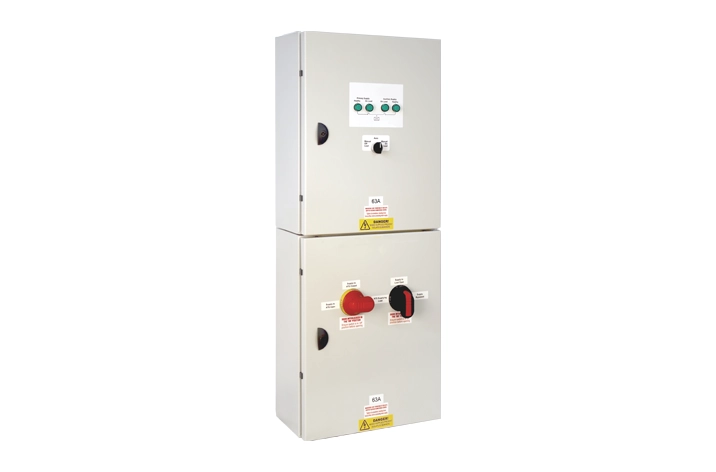

A double electrical panel with labeled switches and dials, featuring warning signs and a light gray exterior.

ATS1 – Automatic Transfer Switch

The ATS1 unit is a budget mains to generator model and includes a warm up and cool down timer as well as a volt free start contact on mains failure to signal the GenSet to start the generator. They do not rely on a DC power supply to operate so will function equally well as a mains to mains system.

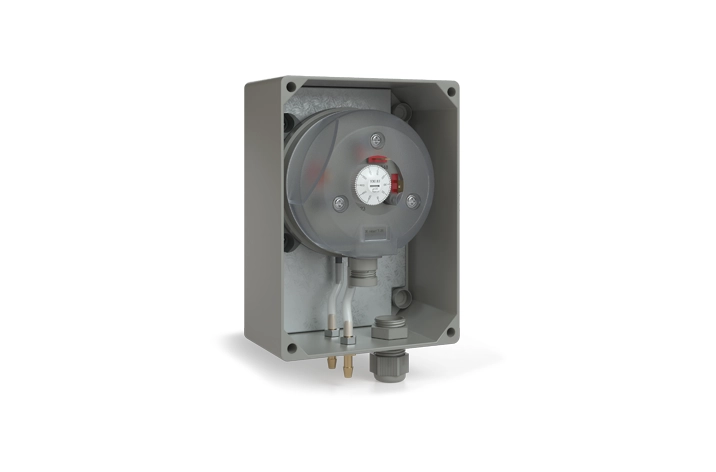

A gray industrial pressure switch with a transparent cover is mounted on a rectangular metal box.

DPS24 – Differential Pressure Switch

The DPS24 Differential Pressure Switch monitors building pressure levels and interfaces with the FCP1000 control unit. If pressure is too high during fan operation, the DPS24 signals the FCP1000 to reduce fan speed, ensuring safe and efficient smoke extraction.

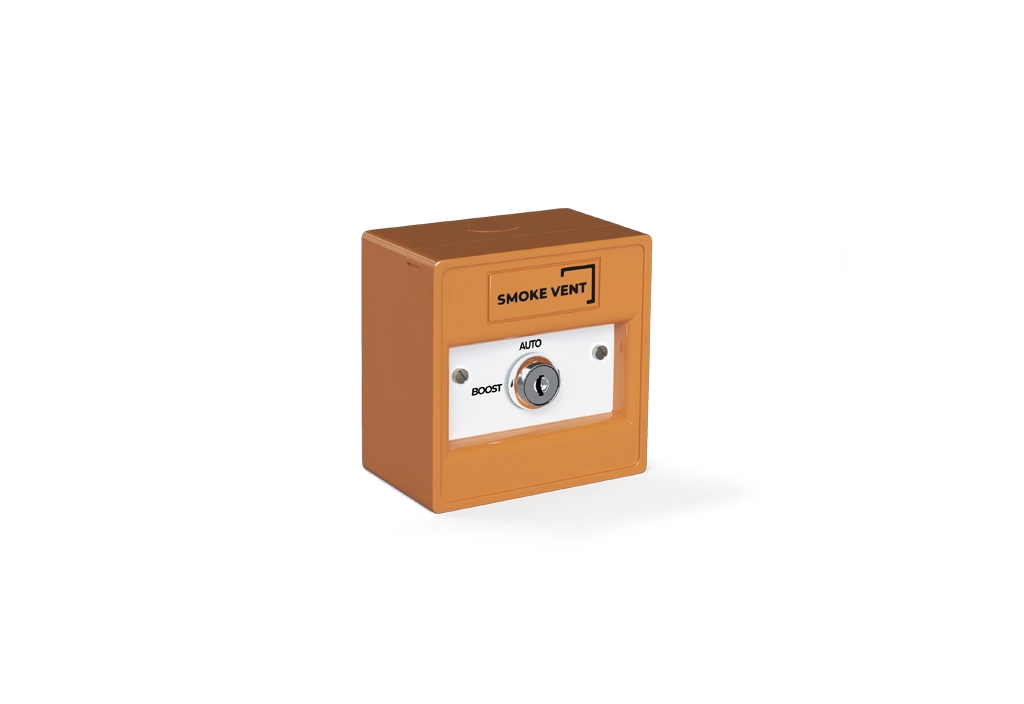

Orange smoke vent control panel with a key switch and labels for "Auto" and "Boost.

BG7/FOS – Firemans Key Switch

BG7/FOS manual key switch for manual operation of smoke extract fan. Compatible with FCP1000 fan control panel. Supplied with protective cover and back box for surface mounting.

BG6/FOS – Firemans Key Switch

BG6/FOS Firemans Key Switch for use with our range of Smoke Ventilation Control Panels. Smoke Call Point will allow for an open or close signal (via Control Panel) to be sent to AOV Smoke Vent upon the detection of Smoke.

A yellow smoke vent emergency button mounted on a white wall, used to release smoke from a building in case of fire and assist with natural ventilation.

WSK 501 – Manual Call Point

WindowMaster WSK 501 manual call point (Breakglass) for use with compatible Smoke Control Panels. Upon a signal from the Manual Call Point (MCP) the AOV or OV Smoke Vent will open releasing the smoke detected in that area.

WSK 503 – Manual Call Point

Windowmaster WSK 503 manual call point (break glass) for use with compatible smoke control panels. Upon a signal from the manual call point (MCP) the AOV or OV smoke vent will open releasing the smoke detected in that area.

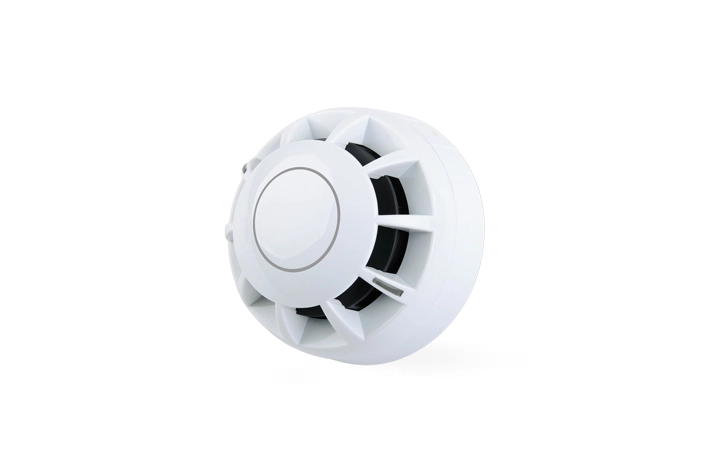

White smoke detector with circular design, featuring a central button and vent-like openings around the perimeter for optimal smoke ventilation, mounted on a white background.

SSR – Smoke Sensor

SSR optical Smoke Sensor for use with our range of smoke control AOV panels. Upon a signal from the SSR-D smoke sensor the AOV Control Panel will send an open signal to the AOV Actuator.

A white rectangular electronic device labeled "Modern Mason" with a connected power cord and plug, seamlessly incorporating door automation technology.

WCC 103 – Control Unit

WindowMaster WCC 103 Controller (3 Amp / 24VDC) for the operation of 24V DC actuators. Unit can be linked to a variety of manual or automatic inputs.

Motor Load

3 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

1

A white electronic device with a rectangular shape and a remote control placed in front of it, often used for window actuators. The remote has buttons labeled for up, stop, down, and additional functions. A power cord is attached.

WCC 103A – Control Unit

WindowMaster WCC 103 Controller (3 Amp / 24VDC) for the operation of 24V DC actuators. Unit can be linked to a variety of manual or automatic inputs.

Motor Load

3 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

1

WCC 106A – Control Unit

WindowMaster WCC 106 controller (6 Amp / 24VDC) for the operation of 24V DC actuators. Unit can be linked to a variety of manual or automatic inputs.

Motor Load

6 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

2

WCC 310 320 natural ventilation control unit to power 24V actuators.

WCC 310/320 – Control Unit

WindowMaster WCC 310/320 controller (10 or 20Amp / 24VDC) for the operation of 24V DC actuators. Unit can be linked to a variety of manual or automatic inputs.

Motor Load

10 amp 20 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

4 8

WCC 310/320 PLUS – Control Unit

WindowMaster WCC 310/320 PLUS controller (10 or 20Amp / 24VDC) for the operation of 24V DC actuators. Unit can be linked to a variety of manual or automatic inputs.

Motor Load

10 amp 20 Amp

Voltage Input

230V AC

Voltage Output

24V DC

Zones

2 6 8

CCU1 – Rain & Temp. Control Unit

CCU1 Indoor Climate Control Unit for the operation of 230V AC window actuators. Unit can be controlled via manual dimmer switch on front of panel, or via automatic sensors to improve indoor Air Quality.

Motor Load

8 Amp

Voltage Input

230V AC

Voltage Output

230V AC

Zones

1

CCU2 – Rain & Temp. Controller

CCU2 Indoor Climate Control Unit for the operation of 230V AC window actuators. Unit can be controlled via manual switch on front of panel, or via automatic sensors for improved Air Quality.

Motor Load

8 Amp

Voltage Input

230V AC

Voltage Output

230V AC

Zones

1

A white, rectangular wireless access point with slightly rounded corners, suitable for integration into systems like door automation or smoke ventilation, against a plain background.

CCU3 – Rain & Remote Control Unit 230v

CCU3 Controller (6.3 Amp / 230V AC) with Radio Receiver for the operation of 230V AC actuators. Unit can be linked to a Rain Sensor, Switch or Remote Transmitter.

Motor Load

6.3 Amp

Voltage Input

230V AC

Voltage Output

230V AC

Zones

1

A gray rectangular electrical junction box with three cable entry points on the top, designed to seamlessly integrate with smoke ventilation systems.

RCU1 – Remote Control Unit 230v

RCU1 Controller with Radio Receiver for the operation of 230V AC actuators. Unit can be linked to a Wireless Switch, Timer or Transmitter

Motor Load

3.15 Amp

Voltage Input

230V AC

Voltage Output

230V AC

Zones

1

A white electronic medical device with a digital display screen showing "ER" and a separate white handheld sensor with a curved design, ideal for use in environments where door automation enhances workflow efficiency.

EVC – Rain & Temp. Controller

EVC Climate Control Unit for the operation of 230V AC window actuators. Supplied complete with digital control unit and weather station (rain, temperature and wind sensor).

Motor Load

4 Amp

Voltage Input

230V AC

Voltage Output

230V AC

Zones

1
