FCP1000 – Fan Control Unit

Logo of Teal Products

Description

The FCP1000 Control Panel is a robust and reliable solution designed to manage and power mechanical fan units for smoke control in residential buildings. Engineered to activate and regulate fan systems in emergency situations, the FCP1000 ensures efficient smoke extraction, enhancing safety by maintaining clear escape routes.

Get a quote

In stock, next day delivery

Additional details

  • Control for 400V Dual Fan Set (TITAN)
  • Inputs for DPS24 Differential Pressure Switch, Smoke Vent Controller and/or Key Switch
  • Outputs for HMI-SCP, HMI-KNX and/or BMS
  • Can be supplied pre-mounted as part of TITAN Dual Fan Set
  • Available in Steel or GRP enclosure

Motor Load

11kW 7.5kW 5.5kW 3.5kW

Voltage Input

400V AC

Voltage Output

400V AC

Zones

1

Inputs For

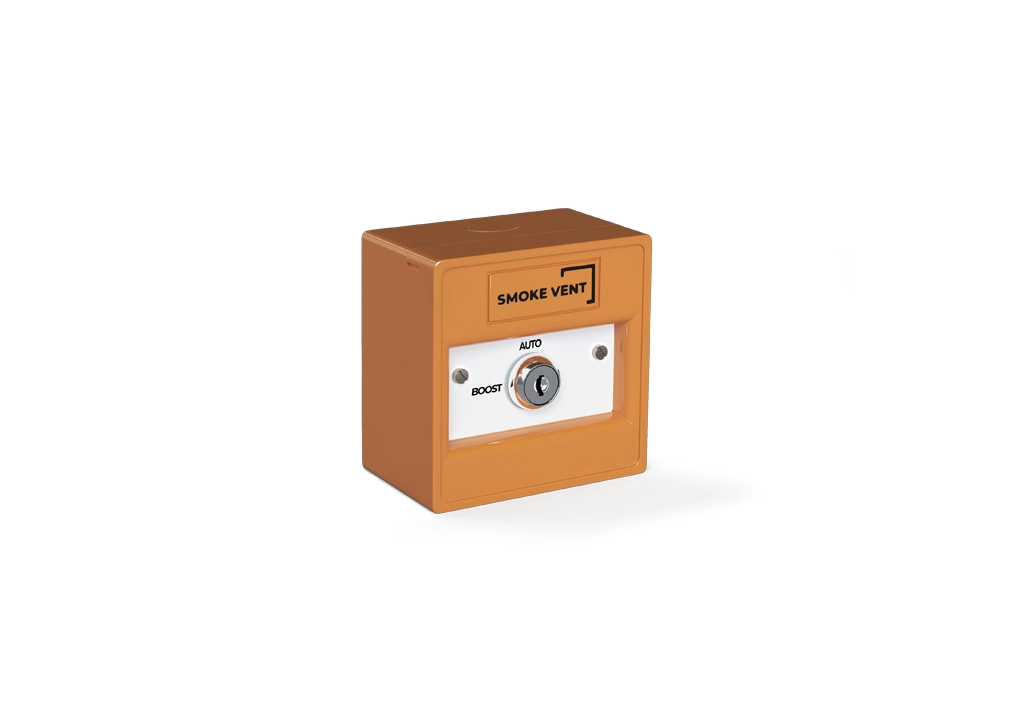

BG7/FOS – Firemans Key Switch

BG7/FOS manual key switch for manual operation of smoke extract fan. Compatible with FCP1000 fan control panel. Supplied with protective cover and back box for surface mounting.

DPS24 – Differential Pressure Switch

The DPS24 Differential Pressure Switch monitors building pressure levels and interfaces with the FCP1000 control unit. If pressure is too high during fan operation, the DPS24 signals the FCP1000 to reduce fan speed, ensuring safe and efficient smoke extraction.

HMI-SCP – Touchscreen Interface

HMI-SCP touchscreen interface for use as part of a smoke ventilation control system. The user is able to drill down zone by zone to view the current system status as well as give a manual open or close/reset command per zone.

SCP500 – AOV Control Unit

SCP500 AOV Control Panel (5 Amp) for the operation of 24V DC AOV or OV’s. Complete with Fire Alarm interface and 72 hour battery backup system as standard.

SCP800 – AOV Control Unit

SCP800 AOV Control Panel (8 Amp) for the operation of 24V DC AOV or OV’s. Complete with Fire Alarm interface and 72 hour battery backup system as standard.

WSC 520 – AOV Control Unit

WindowMaster WSC 520 Smoke Control AOV Panel for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation. Can be configured to operate up to 13 motorlines, with a 20 Amp max. motor load.

WSC 540 – AOV Control Unit

WindowMaster FlexiSmoke WSC 540 Smoke Control AOV Panel for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation. Can be configured to operate up to 26 motorlines, with a 40 Amp max. motor load.

WSC 560 – AOV Control Unit

WindowMaster FlexiSmoke WSC 560 Smoke Control AOV Panel for control of ±24V DC Actuators for the function of smoke extraction combined with daily comfort ventilation. Can be configured to operate up to 39 motorlines, with a 60 Amp max. motor load.
